FOR SALE

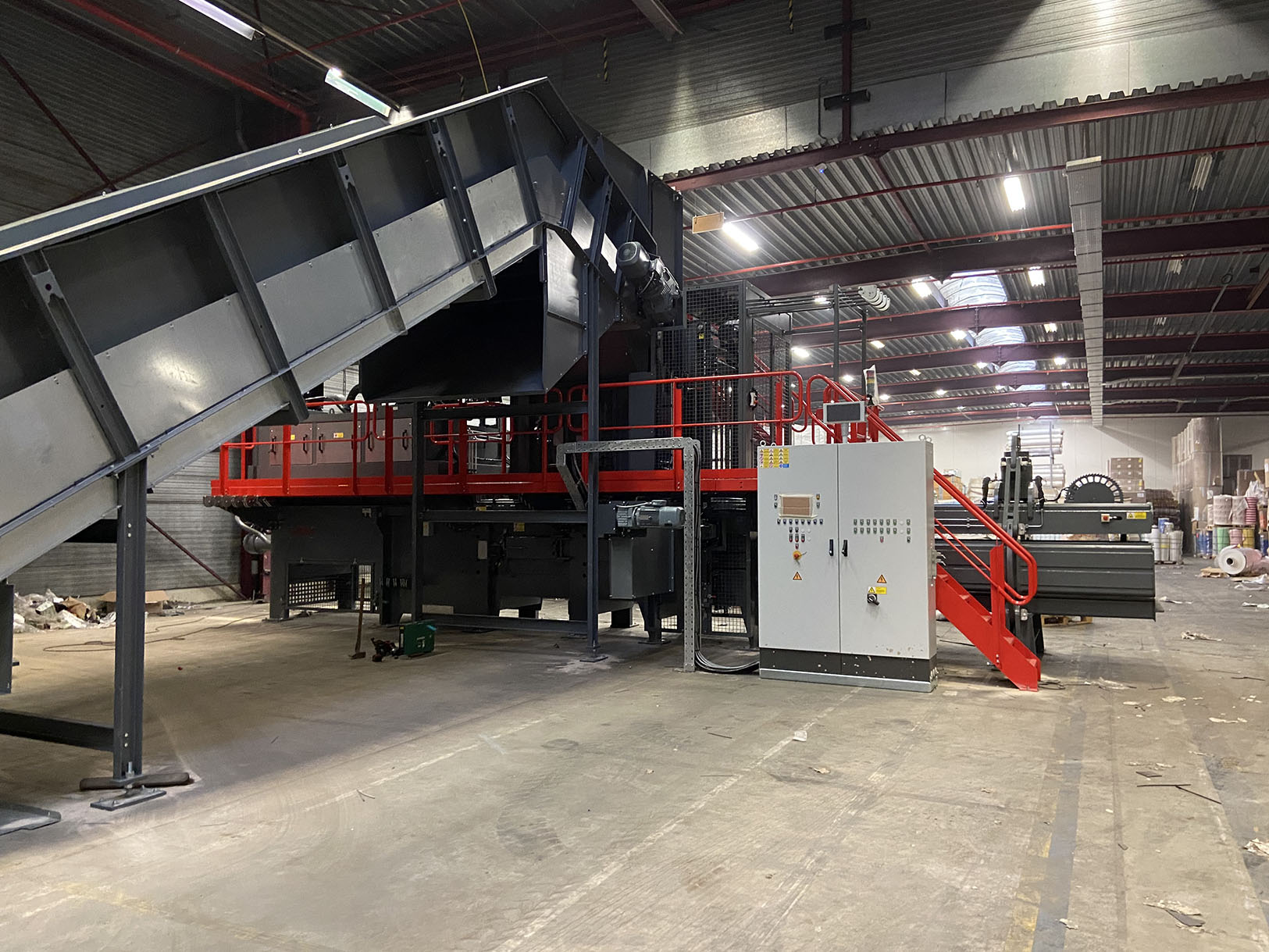

UPAMAT 120 V5H3 occasion with conveyor
TECHNICAL SPECIFICATIONS:
Length: approx. 13,500 mm
Width: approx. 2,400 mm
Height: approx. 3,400 mm (excluding belt hopper)
Machine weight: approx. 35,000 kg
Filling opening: 1,020 x 2,000 mm
Channel dimensions (height x width): 750 x 1,100 mm
Bale weight: 600 to 900 kg (depending on length and material)
Compression force: 1,000 kN at 260 bar
Maximum cutting force: 1,200 kN at 315 bar
ELECTRICAL SPECIFICATIONS:
Power supply: 400 V / 3 PE
Frequency: 50 Hz
Voltage tolerance: max. 5%
Protection class: IP 55
System: Siemens S 7 1.500
HYDRAULIC SYSTEM:
With two 410-litre axial piston pumps, both with a drive power of 45 kW, for a flow rate of up to approx. 450 m³/h;
Main pump: 2 x 45 kW
Oil tank capacity: 3,000 litres
Flow rate:
No load: max. 850 m³/h
Under load: max. 450 m³/h
Capacity depending on bulk density
at 20 to 30 kg/m³: approx. 13.0 t/hour
at 30 to 50 kg/m³: approx. 20.0 t/hour
up to 60 kg/m³: approx. 24.0 t/hour
up to 100 kg/m³: approx. 37.0 t/hour
Bale weight: 600 to 900 kg
Year of manufacture: 2021
Hours: 5,346 hours
Bales: 96,029 bales
The baler is still in active service.
If you are interested in this UnoTech baler, please do not hesitate to contact us. tel: 0(031)161-227226
FOR SALE
UPAMAT 150V5H4 Occasion
TECHNICAL SPECIFICATIONS:
Length: ca. 15.000 mm
Width: ca. 3.000 mm (without horizontal tying system)
Height: ca. 3.800 mm (withhout belt hopper)
Machine weight: approx 53.000 kg
Filling opening : 1.020 x 2.000 mm
Channel dimensions (height x width): 1.100 x 1.100 mm
Bale weight : 1.100 tot 1.700 kg (depending on length and material)
Press pressure : 520 kN bij 260 bar
Maximum cutting force : 1.550 kN bij 315 bar
ELECTRICAL DATA:
Power connection : 400V/ 3 PE
Frequency : 50 Hz
VoltageTolerance : max 5 %
Isulation class : IP 55
System : Siemens S 7 1.500
HYDRAULIC SYSTEM:
With 2x 410 liter axiale piston pumps, with 2 x 55 kW drive power
Main pump : 2 x 55 kW
Oil tank volume : 3.000 liter
Performance volume :
Without load : max. 1.400 m3/uur
In operation: max. 740 m3/uur
Capacity depending on bulk weight
at 20 tot 30 kg/m³ : ca. 22 t/uur
at 30 tot 50 kg/m³ : ca. 35 t/uur
up to 60 kg/m³ : ca. 41 t/uur
up to 100 kg/m³ : ca. 60 t/uur
Year of manufacture: 2015
Are you interested in this UnoTech baler? Feel free to contact us: Tel: 0(031)161-227226
FOR SALE
Macpresse 110/1 Occasion
This baler is including distributeur/fluffer
|
MAC 110/1 |
|
|
Motor power main pump |
Kw 90 |
|
Motor power of the back-pressure pump |
Kw 5,5 |
|
Motor power of the cooling pump |
Kw 2,2 |
|
Motor power of needles |
Kw 5,5 |
|
Motor power of wire cutter |
Kw 4 |
|
Motor power of wire twister |
Kw 2,2 |
|
Main pump |
Variable-displacement piston pumps |
|
Bale dimensions L xH |
1100 x1100 mm |
|
Weight (without olie) |
46.300 kg |
|
Hydraulic oil tank capacity |
3.000 liter |
|
Binding wires |
5 |
Are you interested in this UnoTech baler? Please feel free to contact us: Tel: 0(031)161-227226
TE KOOP
UPAMAT 60H4 Occasion incl. Opvoerband en Kantelaar
Bouwjaar: 2012
TECHNISCHE GEGEVENS
Lengte: ca. 8.500 mm
Hoogte: ca. 2.100 mm (zonder band trechter)
Gewicht machine: ca. 13.000 kg
Vulopening : 920 x 1.250 mm
Kanaalafmeting (hoogte x breedte): 750 x 1.100 mm
Persdruk : 520 kN bij 260 bar
Maximum snijkracht : 630 kN bij 315 bar
ELECTRISCHE GEGEVENS:
Stroom aansluiting : 400V/ 3 PE
Frequency : 50 Hz
Spannings Tolerantie : max 5 %
Isolatieklasse : IP 55
Systeem : Siemens S 7 1.500
HYDRAULISCH SYSTEEM:
Hoofdpomp : 1 x 30kW
Olie tank volume : 850 liter
Heeft u interesse in deze UnoTech balenpers? Neem gerust contact met ons op: Tel: 0(031)161-227226
